COOLING SYSTEMS

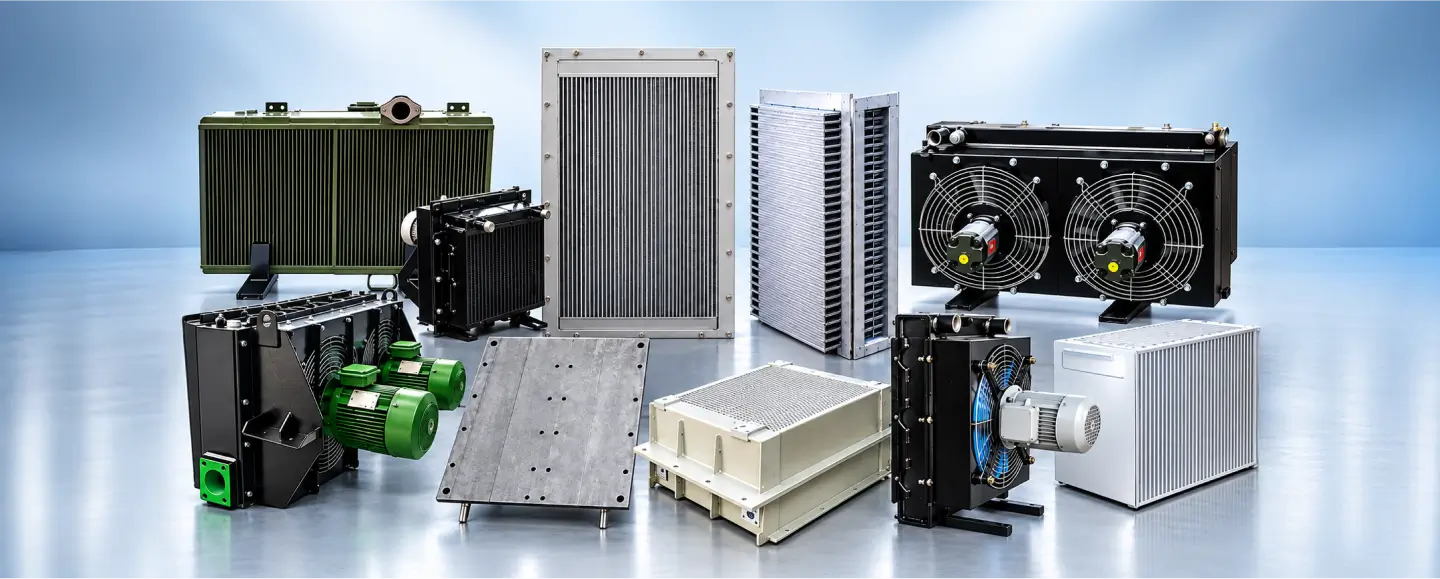

At Apollo, we make Cooling systems made of vacuum brazed aluminum plate fin heat Exchangers. These heat exchangers cool the fluid by using forced air or gas. The various products include radiators, oil coolers, charge air coolers, heat sinks and liquid cooling plate. We also design and make customized cooling package solutions catering to customer specific requirements of the application.

Our products have their end applications in field of railway rolling stock, defence vehicles and airborne systems, wind energy turbines, industrial equipment like compressors, hydraulic power packs, gear boxes and Off highway construction & earthmoving equipment.

Liquid Cold Plates
Apollo designs and manufactures Liquid Cold Plates for IGBT module cooling. These Aluminium Cold Plates are machined, vacuum brazed and welded as per EN 15085-2 CL1 for various applications of electronic cooling.
Precise thermal design and fin selection is done to ensure achieve this cooling performance is delivered. The surface finish post machining is ensured to deliver maximum contact of the electronic module with the aluminum cooling plates for optimum heat transfer. Some of the Cold plates are heat treated post machining to ensure mechanical properties are retained of the parent material.
Salient Features of compact aluminium heat exchangers:
  • Manufactured via fluxless vacuum brazing process to ensure clean brazing joints and high burst strength of more than 80 bar.
  • Maximum heat transfer area in less area thus requires lesser foot print area.
  • Long life aluminium alloy ensures trouble free performance for over 20+ years
  • Additional coating and painting, the aluminium plate fin cooler can withstand a corrosive level of C5 conditions
  • Designed to meet Shock & vibration testing as per IEC 61373
  • Designed to meet Fire & smoke protection as per EN 45545

Application: Electronic Cooling in Railway, Defence, Data centres.

Specification:

1 Heat Load:

  • Charge Air Cooler – up to 12 kW

2 Working pressure: Max 25 bar

3 Vacuum Brazed / Extruded welded design

4 Material: AA 6061

If you need more details about aluminium liquid cold plates, contact us at sales@apollohx.com We can select the right product for your application.
